 Home > PRODUCTS > MILITARY EQUIPMENT > HANDSET > KT-H250/U (H-250/U st.)

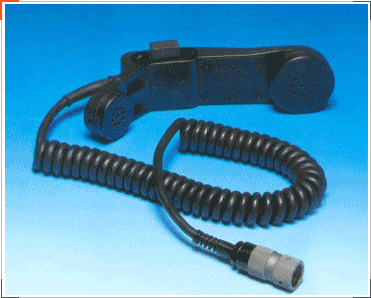

    KT-H250/U (H-250/U st.)
SPECIFICATION

Functional Description:
Handset KT-H250/U(H-250/U st.) (E.M.I. Cable) is a KT-PRC77(AN/PRC-77 st.) or KT-PRC25(AN/PRC-25 st.) the Microphone and Receiver dynamic and noise canceling

Technical Description (Microphone)
   - Normal Impedance: 150Ω ± 30
   - Frequency: 300 ~ 3,500 Hz
   - Sensitivity: -56dB (1 kHz)

Technical Description (Earphone)
   - Normal Impedance: 1,000 Ω ± 200
   - Frequency: 500 ~ 3,500 Hz
   - Sensitivity: 105dB ± 3 (1 kHz)

 Environmental Limitations Equipment Operation
  - Elevation: up to 15,000 feet above sea level
  - Relative Humidity: up to 97 percent
