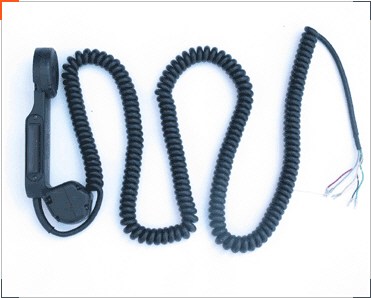

    KT-H207/VCR (H-207/VRC st.)
COMPOSITION
Technical Description (parts list)

Switch.
5930-00-857-1012 (SM-C-448305)
Retainer.
(SM-B-415580)
Transformer
5950-00-857-1010 (SM-C-415585)
Bracket.
(SM-B-415587)
Cord assy
5995-00-857-1022 (SM-D-415653)
Earphone Assy
 (SM-B-415588)
Boot.
5975-00-857- 1033   (SM-B-415659)
Handle assy.
(SM-D-415578)
Shell, Earphone.
(SM-C-415593)

Mouthpiece, Microphone
5965-01-139-6894  (SM-C-415594)

















SPECIFICATION

Technical Description
  Microphone
    - Type: Dynamic

    - Sensitivity: More than -56 dB (1 KHz)
    - Impedance: 150 Ohm ±10 % (1 KHz)
    - Frequency Range: 300 ∼ 3,500 Hz
   Earphone
    - Sensitivity: More than 102 dB

    - Impedance: 15 Ohm (1 KHz)
    - Frequency Range: 300 ∼ 3,000 Hz

 ▷ Cable Length (Rubber Jacket): 122 Cm (48 ˝) (Extended 610 Cm- 240 ˝)
