 Home > PRODUCTS > MILITARY EQUIPMENT > HEADSET > KT-H161F/GR (H-161F/GR st.)

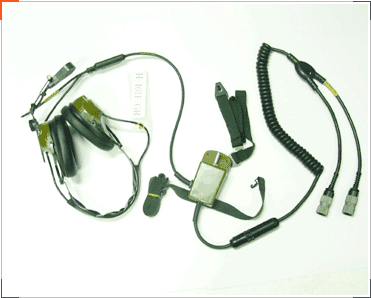

    KT-H161F/GR (H-161F/GR st.)

SPECIFICATION


  ▷ Microphone M-138/G (5965-927-1851)
   - Type : Dynamic Microphone
   - Sensitivity : More than -56 dB (1 KHz)
   - Impedance : 150 ±15 Ohms (1 KHz)
   - Frequency : 300 ∼ 3,500 Hz


  ▷ Earphone M-139/G (5965-135-0506) X 2ea
   - Type : Dynamic Earphone
   - Sensitivity : 105 dB (1 KHz)
   - Impedance : 1,000 Ohms (1 KHz)

  ▷ Connector
  - The middle connector : NEXUS connector AP-107XL st. and AP-107XL st.
  - End connector : KT-U229/U(U-229) 5 pin connector x 2 ea
