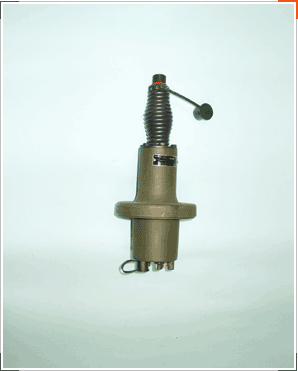

    MX-6707/VRC
SPECIFICATION

Frequency Range : 30 - 76 MHz 30 - 80 MHz
INPUT Impedance : 50 Ohms
Power Handling : 70 W Maximum
Gain : -6dB ~ 5 dB
Overall Length : 1-1/5 feet
Weight : 8-1/2 lbs (3.5Kg)
Solenoid Operating Voltage : 24V(DC) nominal
Operating Temperature Range : -40℃ to +65℃
                                                       -45℉ to +150℉

COMPOSITION

Antenna AT-1095/VRC (upper section)
Antenna AS-1730/VRC (lower section)
