 Home > PRODUCTS > MILITARY EQUIPMENT > RADIO SET (PRC-77 st.) > For KT-PRC77 (PRC-77 st.) RADIO SET PARTS

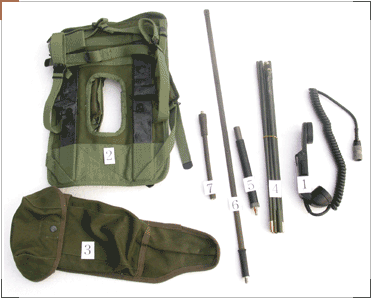

    For KT-PRC77 (PRC-77 st.) RADIO SET PARTS
1
Handset H-189/GR st.
SM-C-544226 (5965-069-8886)
2
Caring case ST-138/PRC st.
SM-D-447168 (5820-892-8094)
3
Antenna Bag CW-503/PRC st.
SM-C-447163 (5820-00-086-7138)
4
Antenna AT-271/PRC st.
SM-D-182392 (5985-242-4967)
5
Antenna Support AB-591/PRC st.
SC-C-85713 (5820-086-7149)
6
Antenna Rip AT-892/PRC st.
SC-C-135894 (5820-889-3803
7
Antenna Base AT-892/PRC st.
SC-D-195895 (5985-00-930-1092)

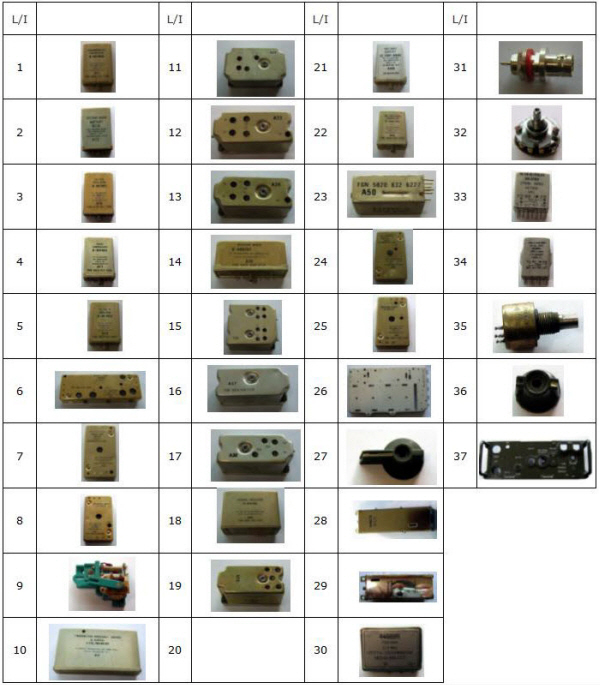

Another parts list

L/I
NSN
Draw No
Description
1
5820-00-973-3586

MODULE A11
2
5820-00-973-9595

MODULE A12
3
6110-00-957-1460

MODULE A16
4
5820-00-973-3600

MODULE A17
5
5820-00-973-3601

MODULE A18
6
5820-00-972-3602

MODULE A21
7
5820-00-973-3604

MODULE A22
8
5820-00-973-1622

MODULE A23
9

SMD-447313
MODULE A28
10
5820-00-930-3740

MODULE A31
11
5820-00-930-3729

MODULE A32
12
5820-00-930-3735

MODULE A33
13
5820-00-930-3736

MODULE A34
14
5820-00-930-3732

MODULE A35
15
5820-00-930-3738

MODULE A36
16
5820-00-930-3739

MODULE A37
17
5820-00-930-3737

MODULE A38
18
5820-00-930-3730

MODULE A39
19
5820-00-930-3728

MODULE A40
20
5915-00-957-0227

MODULE A43
21
5820-00-007-3542

MODULE A44
22
5820-00-930-3731

MODULE A45
23
5820-00-832-6227

MODULE A50
24
5820-00-937-3813

MODULE A54
25
5895-00-930-3734

MODULE A55
26
5820-00-3726

A49
27

SMC-447226
BAND SWITCH
KNOB
28
5910-00-930-3873

CAPACITOR CI
(10-16)
29
5910-00-973-2489

CAPACITOR C2
(10-21)
30

SMC-448888
CRISTAL DISCRIMINATOR
31
5935-00-832-4904

CONNECTOR
32
5915-50-098-2110

ON/OFF SWITCH
33
5945-00-951-9880

RELAY K2
34
5945-00-951-6458

RELAY K3
35
5905-00-978-7455

VOLUME CONTROL
36

MS-91524-1
VOLUME CONTROL KNOB
37

SMD-449063
FRONT PANAL ASSY
