 Home > PRODUCTS > MILITARY EQUIPMENT > FIELD TELEPHONE SET > KT-TA1/PT (TA-1/PT st.)

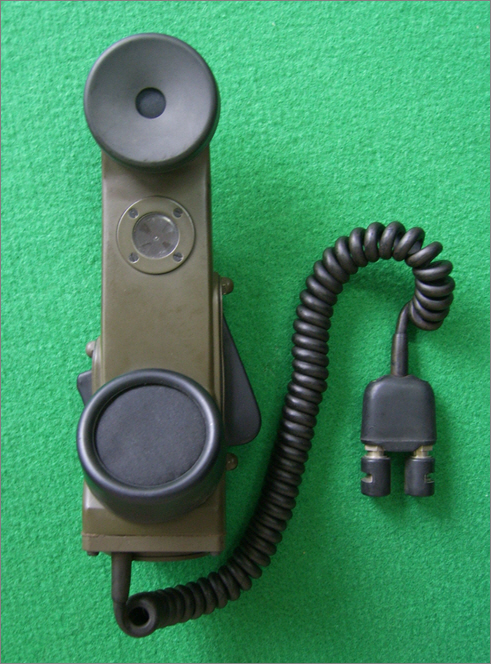

    KT-TA1/PT (TA-1/PT st.)
SPECIFICATION

 KT-TA121/PT (TA-121/PT st.) Microphone
 ▷ Type : Electro Magnetic
 ▷ Sensitivity : More than 18dB (1KHz)
 ▷ Impedance: 600ohm +-60ohm (1KHz)
 ▷ Frequency range : 0.3~4KHz
 ▷ Termination : Contact Ring
 ▷ Weight : 59.5g
 ▷ Dimensions(inch) : 51.0 pie x 20
  Ambient Temperature : -20℃ ~ 60℃
  Humidity : Max 95% RH
  NSN : 5965-00-341-9312

▶ KT-TA118/PT (TA-118/PT st.) Earphone
  Type : Electro Magnetic
  Sensitivity : More than 94dB(1KHz)
  Impedance : 600 ohm +- 60 ohm (1KHz)
  Frequency Range : 0.3 ~ 4KHz
  Termination : Contact Ring
  Weight : 57.5g
  Dimensions(inch) : 51.0 pie x 18
  Ambient Temperature : -20℃ ~ 60℃
  Humidity : Max 95% RH
  NSN : 5965-00-341-9311

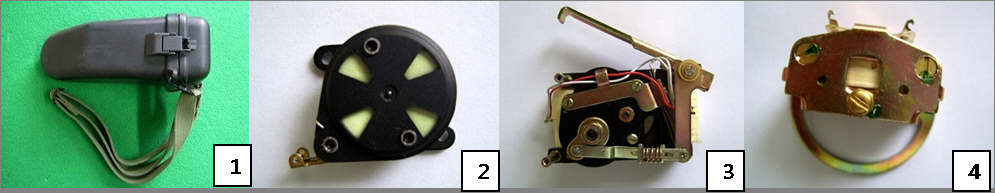

Parts List
1.CASE,TEL 5895-00-543-1881 (SM-D-143140) : Without strap
                                       (SC-DL-170363) : With strap
2.VISUAL INDICATOR 5965-00-698-0430(SM-C-168967)
3.GENERATOR 5805-00-698-0429(SM-D-189375)
4.BUZZER 6350-00-698-0417(SM-C189639)
view list
